Performance Steel Doors

A red ribbon with a white border on a white background.

PS Series - Steel Security Doorsets

Having been a “fit and forget” door manufacturer for over 20 years, when we entered the steel security door market we were determined to be true to that ethos rather than simply offering another steel door prone to rust.

We, therefore, tested and certified our entire product range in stainless steel – 304 or 316 grade. Mounted on full length continuous stainless steel hinges and utilising fully stainless steel locking furniture, our steel door range is as close to maintenance free as it is possible to get.


Our steel door products are certified to LPS1175 Issue 8:



We set out to achieve the broadest size range and largest number of configurations of any door manufacturer certified against LPS1175. All of this with a doorleaf thickness of 45mm and a best in class weight of only 45kg/sqm.


Within our certification are over 600 individually defined locking options from simple single point locks to complex electro-mechanical multi-point locking systems.


By utilising our fully tested and certified range of mullions and transoms, we are able to create a wide range of configurations to suit almost any aperture.


We can offer louvre ventilation and vision panels within our security rated doorleaves.


Offered with a 20 year warranty for peace of mind (conditions apply).

Please scroll through tabs for more

  • Hinged or removable over panels
  • Removable side panels
  • Vision panels. Unit size range: 170mm to 1100mm wide & 170mm to 1400mm high
  • Louvre vents with or without insect/vermin mesh. Unit size range: 125mm to 900mm wide & 125mm to 900mm high

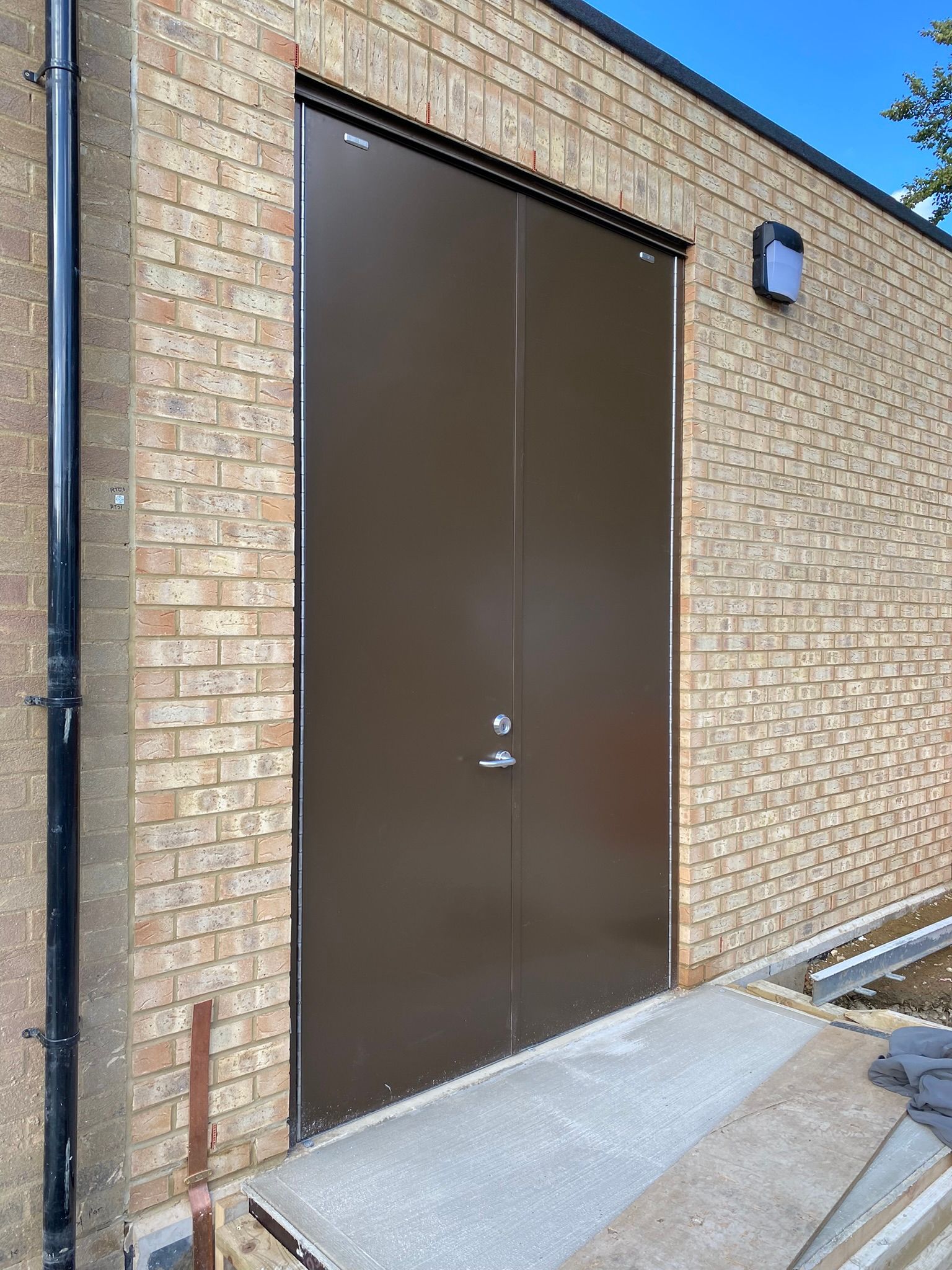

A brown door is on the side of a brick building.
A brown door is on a brick wall next to a concrete walkway.
A brown door with a push to open sign on it
A large white building with a blue roof is sitting in a parking lot.

Configurations

A red ribbon with a white border on a white background.
A black and white drawing of different types of windows.

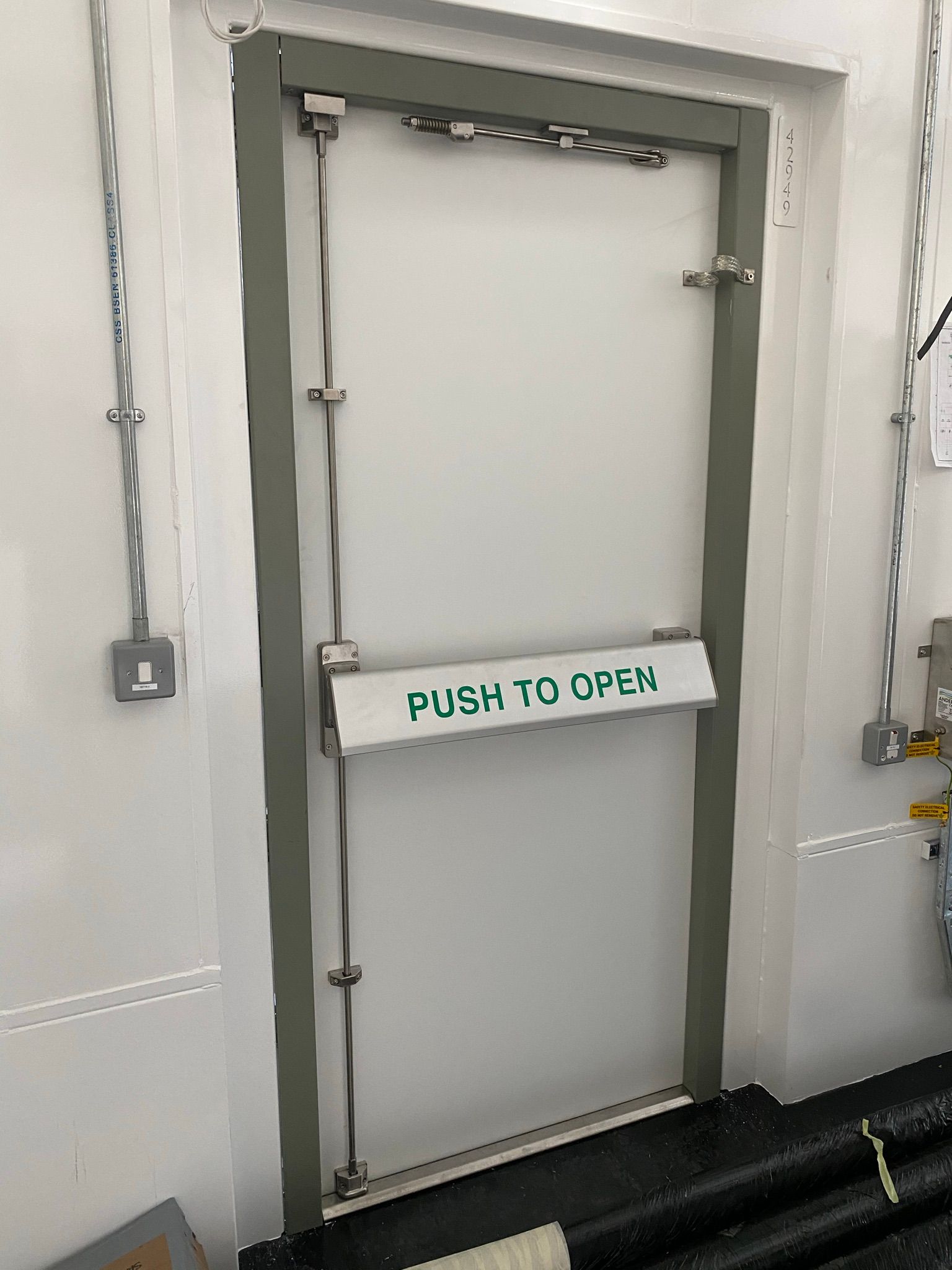

A white door with a push to open sign on it.
PS2 Steel Security Doorsets

The most comprehensive range of steel security doorsets on the market accredited to B5 (SR2) LPS 1175 Issue 8.

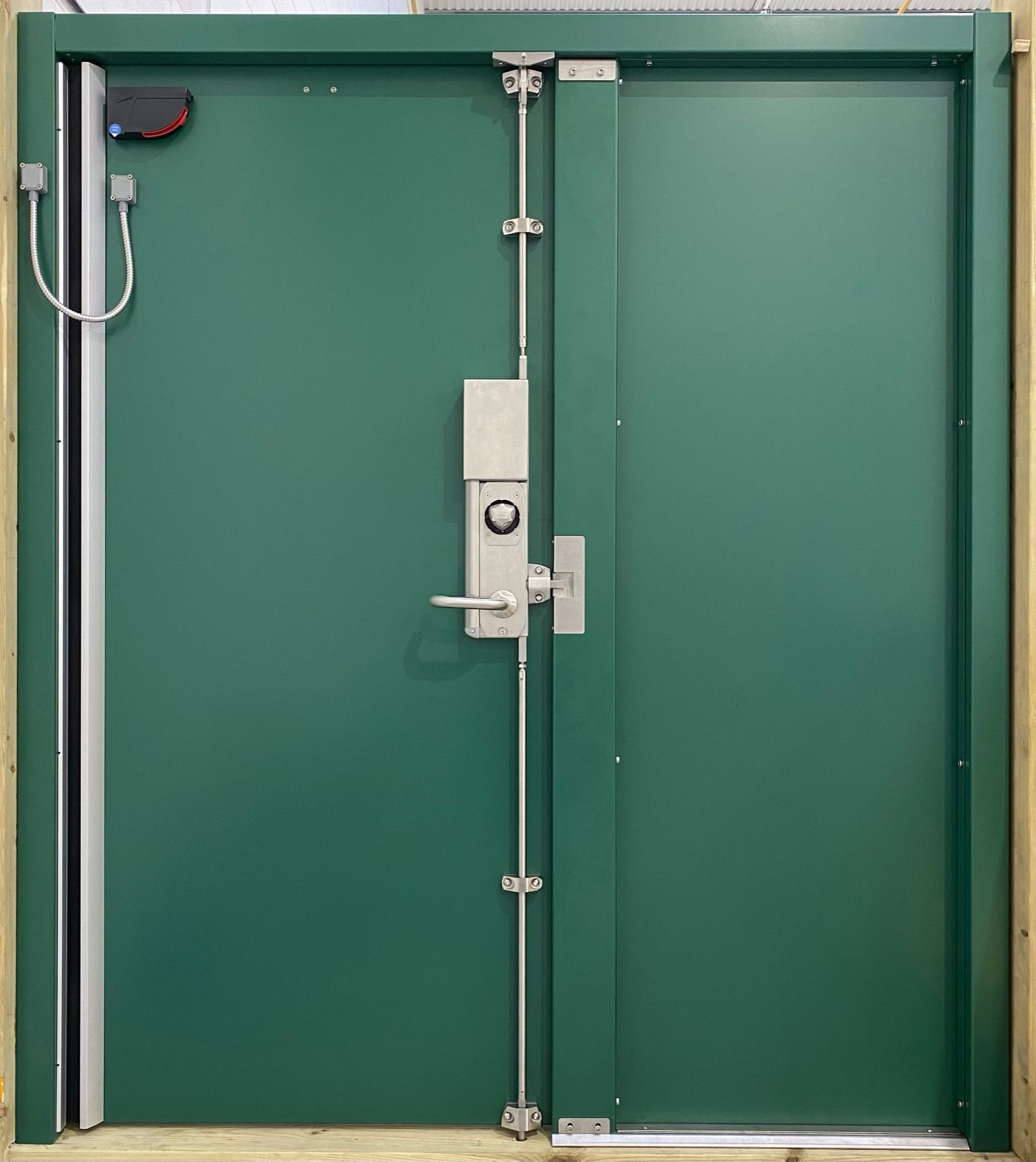

A green door with a stainless steel lock on it
PS3 Steel Security Doorsets

The most comprehensive range of steel security doorsets on the market accredited to C5 (SR3) LPS 1175 Issue 8.

Specifications

A red ribbon with a white border on a white background.
Market Leading Certified Features
  • Largest door leaf size range, up to a colossal 1600mm in width and 3275mm in height
  • Widest range of doorset configurations available
  • Thinnest and lightest door leaves. Only 45mm thick and weighing no more than 45kg/m2. Less than half the weight of some of our competitors
  • The greatest number of MICO High Security Locking Systems and functions listed in the LPCB Red Book for any doorset product with a choice of single point , 2-point or 3-point locking systems
  • Unlimited structural opening sizes when specified with adjacent over panels and side panels
  • Factory fitted hardware throughout
  • Choice of alternative colours to each face of door leaf as standard
  • No quibble, long term product warranty scheme
Certified Options
  • LPS 1175: Issue 8 Security Rating B5 (SR2) or C5 (SR3)
  • Magnelis® corrosion resistant mild steel or stainless steel substrates
  • Single, double or odd-leaf double doorset configurations
  • Hinged or removable over panels
  • Removable side panels
  • Vision panels up to 1100mm wide x 1400mm high
  • Louvre vents up to 900mm wide x 900mm high, with or without insect/vermin mesh
  • Panic escape, emergency escape, manual deadlocking, automatic deadlocking or electro-mechanical deadlocking functionality
Certified Performance
  • CE marked in accordance with external door standard EN 14351-1: 2006 & A2: 2016
  • LPS 1175: Issue 8 Security Rating Classifications B5 (SR2) and C5 (SR3)
  • Secured by Design product listed and accredited
Market Sectors & Applications

Energy, Water, Telecommunications, Commercial, Health, Transport, Government, Retail, Sports & Leisure, Education, Pharmaceutical.




Extended Warranty

TS Designs Limited want you to have full peace of mind and confidence in the long-term durability of our products and offer a market leading warranty scheme fully supported by our dedicated service and maintenance team. A 10 year warranty from date of dispatch is offered covering the repair or replacement of any door leaf or frame component found to be defective due to faulty materials or workmanship. In addition, door leaves and frames manufactured from Magnelis® coated steel and finished in our high quality polyester powder coated finish are supplied with a 10 year corrosion warranty from date of delivery. Upgraded stainless steel Grade 304 or 316 material versions with a powder coated finish to suit saline environments or harsh conditions are provided with a 20 year corrosion warranty.

A logo that says bespoke made in the uk
A logo for sustainably manufactured products with a door and arrows.
A logo that says `` designed for maximum security '' with a shield and a chain.
A logo that says zero to low maintenance with a wrench in a circle.

Security you can trust

A red ribbon with a white border on a white background.
If you would like to know more about our security door solutions and how we can help you reduce your through-life costs and carbon emissions, please send us your details and the issues you would like us to address.
