PS3 Performance Steel Door

PS3 - Steel Security Doorsets
Intro summary to go here....
Configurations

Single leaf outward opening security doorsets with or without side/over panels

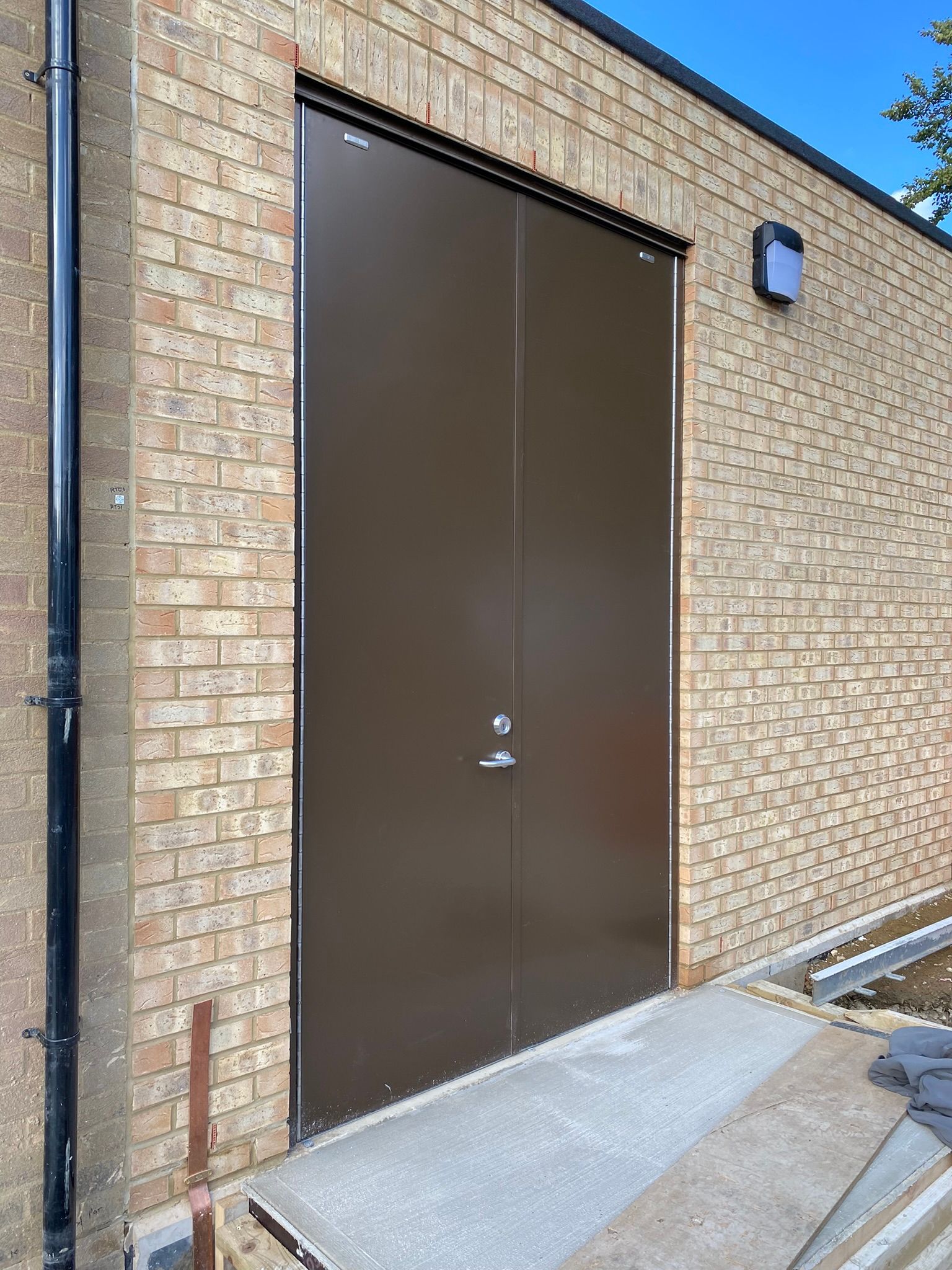

Double leaf outward opening security doorsets with or without side/over panels
Please scroll through tabs for more
Options
Construction
Fixings & Hardware
Finishes
Certifications
Downloads
- Hinged or removable over panels
- Removable side panels
- Vision panels. Unit size range: 170mm to 1100mm wide & 170mm to 1400mm high
- Louvre vents with or without insect/vermin mesh. Unit size range: 125mm to 900mm wide & 125mm to 900mm high
Leaf Construction
- Leaf thickness: 45mm
- Outer skin material: 1.2mm thick Magnelis® corrosion resistant steel or Grade 304 or 316 stainless steel
- Internal reinforcement material: attack resistant armoured steel
- Core material: impact resistant honeycomb, high-density mineral wool or polyurethane foam
- Anti-pry astragal to leading edge: 3mm thick aluminium alloy
- Leaf weight with honeycomb infill: approx. 45 kg/m² excluding hardware
Frame Construction
- Frame profile: single or double rebate
- Minimum profile size: 100mm x 70mm
- Frame material: 1.5mm thick Magnelis® corrosion resistant steel or Grade 304 or 316 stainless steel
- Assembly method: butt jointed and bolted corners
- Threshold: stainless steel or SAA low-profile versions or no threshold option
- Weather seal: silicone self-adhesive gasket
Fixing Method
- 2nd fix between structural opening reveals
- Shimmed or jacking channel frame fixing system options
- Suitable wall construction materials: brickwork, blockwork, concrete, steel or timber
Hardware
- Heavy duty stainless steel continuous hinges
- MICO MSR single, 2 & 3-point locking systems
- MICO Elite or Abryll single point locking systems
- MICO INT Multipoint 2 & 3-point locking systems
- Surelock McGill Sterling single point locking systems
- Surelock McGill Slimline 2 & 3-point locking systems
- Panic escape, emergency escape, manual deadlocking, automatic deadlocking or electro-mechanical deadlocking options
- External key access with MICO USCH or Surelock McGill GSS cylinder guard protection
- External padlockable hasp & staple devices or MICO MLK, MICO ELK or Surelock McGill LEO outside access devices
- Tower bolts or MICO MSR, MICO INT Multipoint or Surelock McGill Slimline 2-point locking systems to passive leaf
- Door closers or door stays
- Factory fitted unless otherwise stated
- Polyester powder coat to a range of standard or bespoke colours. 30% gloss level
- Brushed, polished or patterned stainless steel
- CE marked in accordance with external door standard EN 14351-1: 2006 & A2: 2016
- LPS 1175: Issue 8 Security Rating Classification B5 (SR2) Certificate No. 1570a See: https://www.redbooklive.com/download/certs/1500-1599/C1570a02%20TS%20Designs%20Ltd.pdf
- Secured by Design product listed and accredited
- Thermal transmittance (U-values) certified in accordance with EN ISO 10077-1: 2017 U-value for single and double doorsets: 3.0 W/m²·K
- Panic and emergency escape hardware certified in accordance with EN 1125: 2008 and EN 179: 2008
- Hinges certified in accordance with EN 1935: 2002
- Quality Management System certified to EN ISO 9001: 2015 Certificate No. 11955
- Environmental Management System certified to EN ISO 14001: 2015 Certificate No. 2993
- Occupational H&S Management System certified to EN ISO 45001: 2018 Certificate No. 1466
